INDUSTRIAL OVEN

INDUSTRIAL OVENS

WE ARE ONE OF THE TOP LEADING & EXPERIENCED MANUFACTURERS OF INDUSTRIAL OVENS WHICH ARE MADE TO WORK AS PER YOUR CUSTOMIZATION IN TERMS OF SIZE, TYPE ,TEMPERATURE & APPLICATION. WE PROVIDE A GOOD RANGE OF TECHNICAL ASPECTS TO REACH OUR CUSTOMERS TARGET & CUSTOMERS SATISFACTION IS OUR PRIME MOTTO. INDUSTRIAL OVEN IS A HEATED CHAMBER THAT IS USED TO PERFORM A WIDE RANGE OF APPLICATIONS WITHIN INDUSTRY. GENERALLY, INDUSTRIAL OVENS PROCESS A RAW MATERIAL AT EXTREMELY HIGH TEMPERATURES TO PERFORM A HEAT TREATMENT PROCESS.

General Specification

CONSTRUCTION : M.S ANGLE FRAME
  • 40 mm * 40 mm * 5 mm (Small Size)
  • 40 mm * 40 mm * 5 mm (SMALL SIZE)
  • 50 mm * 50 mm * 5 mm (BIG SIZE)
  • 18 Swg. for Temp. up to 250 Deg.c
  • 16 Swg. for Temp. up to 450 Deg.c.
  • The inside can be in S.S. 304
  • S.S. 316/ S.S 310

Temperature Ranges:

  • 50 to 600 Deg. Cent

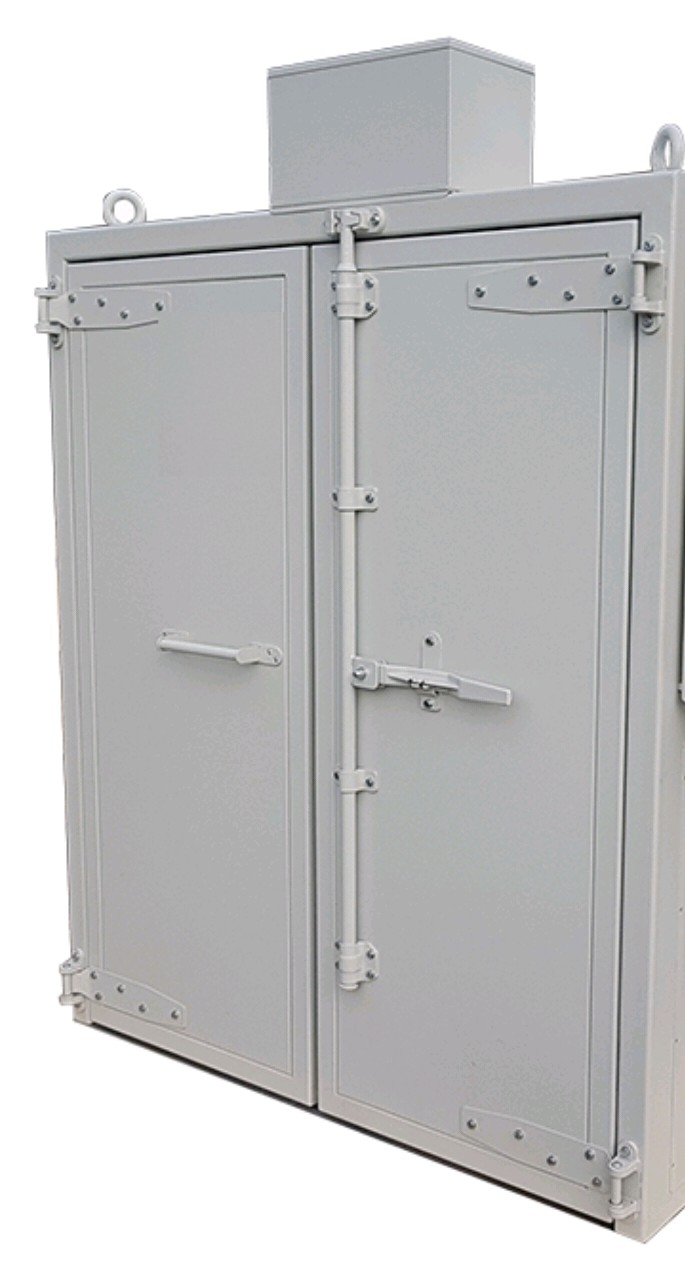

Door:

  • Single door or two door is provided suitable to inner working space. Doors are fixed on heavy duty hinges and provided with a latch arrangement. A hand / mechanically operated vertical lifting type door can be provided

Insulation:

  • Glass Wool / Resin Bond Wool / Creamic Wool insulation is provided according to working temperature.

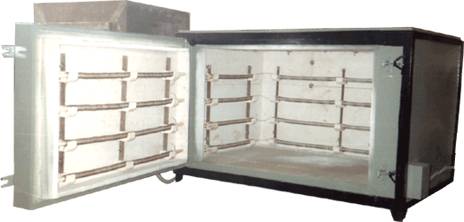

Heating:

  • The oven is heated electrically by specially designed S.S.Tubular/ Fin type / Nichrome Wire / Refractory type heater with a large surface area to prevent burn out. The heaters are rewireable type and are accessible for service, inspection and replacement from outside the oven. The oven also be heated by passing steam or thermic fluid or hot water/oil through specially designed coil made from continuous finned tubes.The oven can also be heated by LPG/LDO.

Air Circulation :

  • Forced air circulation inside the Oven is provided by one or more axial flow or centrifugal blower fans. Arrangement for recirculation, supply of fresh air and discharge of vapours is provided the air distribution system inside the Oven is designed to suit the application and the nature of product. We provide Crossflow,through flow,Vertical and Horizontal air flow system.

Temperature Controller:

  • Temperature inside the Oven is controlled by Thermostat or Digital Temp. controller or PID Controller with Thyristor Power Pack. Depending upon application.

Accessories:

  • Strip Chart Recorder / Circular Chart Recorder / PLC Controller.

Locking:

  • Ball catch type or Special locking arrangement depending upon application.

Tray & Trollies:

  • Trays and Trolley and other type of loading arrangement are provided to suit application.

Paint:

  • Inside heat resist Aluminium Silver outside Nickel Grey /Any plain.
